Samson AirLine 99m Fitness | Headset Wireless System

Previous productShure SM31FH | Fitness head...

Next productConcert 88x-SE10 | Wireless...

Be the first to review this product

Manufacturer: Samson

SKU: AIR99AH9

Stock Availability

East London Store	1
PE Store	1

Price: R9 750,00

Old price: R12 995,00

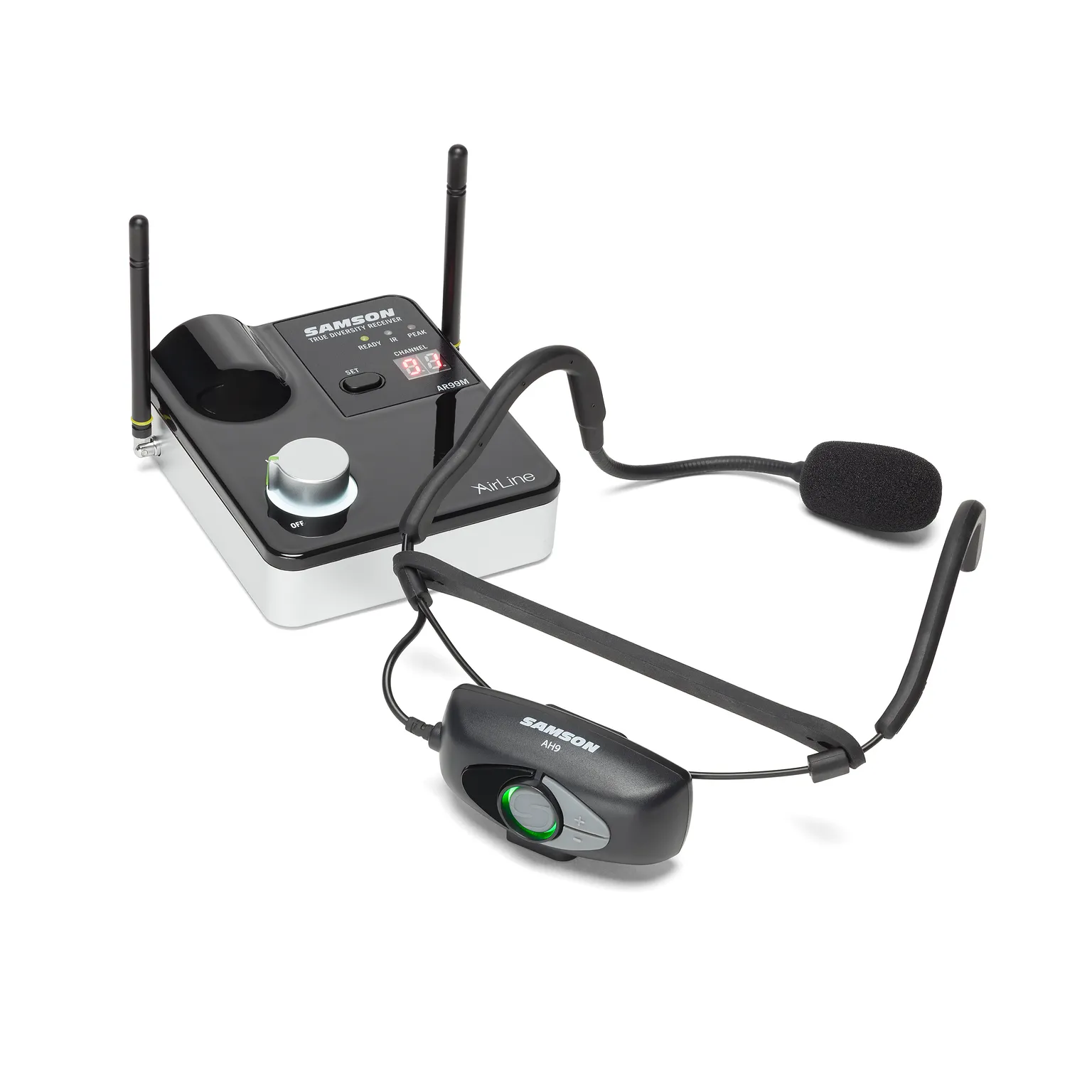

Headset Wireless System with Tabletop Receiver

The AirLine 99m AH9 system is a unique wireless microphone solution offering high-definition sound for fitness instructors and active performers, featuring the AH9 micro transmitter mounted directly to the Qe fitness headset microphone for complete freedom from cables and beltpacks.

Qty:

+ -

AirLine 99m Fitness Headset Wireless System

Frequency-agile UHF wireless system
100 operating channels across 24MHz bandwidth
Up to 8 simultaneous systems per frequency band (region dependent)

AH9 Wireless Micro Transmitter

Micro transmitter mounted directly to a double ear headset (no beltpack or cable required)
Water/sweat-resistant Qe headset microphone with condenser capsule
Up to eight hours of battery life using built-in rechargeable lithium-ion battery
Sealed gold contact charging connector
Low battery LED indicator
300' operating range (line-of-sight)
Variable Gain control
One-touch Mute
Windscreen included

AR99m Wireless Micro Receiver

True RF Diversity micro receiver design minimizes dropouts
Set button scans/selects optimal channel options
IR sync wirelessly matches transmitter to receiver frequency
Tone key prevents unwanted noise when transmitter is off or out of range
Channel and Ready/IR/Peak LED displays
Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs
USB port for adding a Samson XPD Series wireless system or charging AH9 transmitter
Rotary volume knob with integral power switch
1/4-wave antennas

Specifications

System

Working Range: 300' (100m) line of sight
Audio Frequency Response: 50 Hz - 15 kHz
T.H.D. (Overall): <1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range: >100 dB A-weighted
Signal to Noise: >95 dB
Tone Key Frequency: 35 kHz

AH9 Transmitter

Input Gain Range: 20dB
RF Power: 10mW EIRP
Power Requirements: 3.6V 500mAh

Lithium Ion rechargeable battery

Battery Life: 8 hours
Dimensions: 150mm x 170mm x 100mm
Weight 60g

AR99m Receiver

Audio Output Level 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced): +14dBu
Audio Output Level XLR jack (balanced): +9dBu
Audio Output Impedance 1/8" (3.5mm) & 1/4" (6.3.mm) jack (unbalanced): 810 Ohms
Audio Output Impedance XLR output jack (balanced): 240 Ohms
Sensitivity: 100dBm/30dB SINAD
Image Rejection: >50dB
Operating Voltage: 15VCC 600mA
Dimensions (LxWxH): 110mm x 95mm x 39mm
Weight: 192g
