General specifications

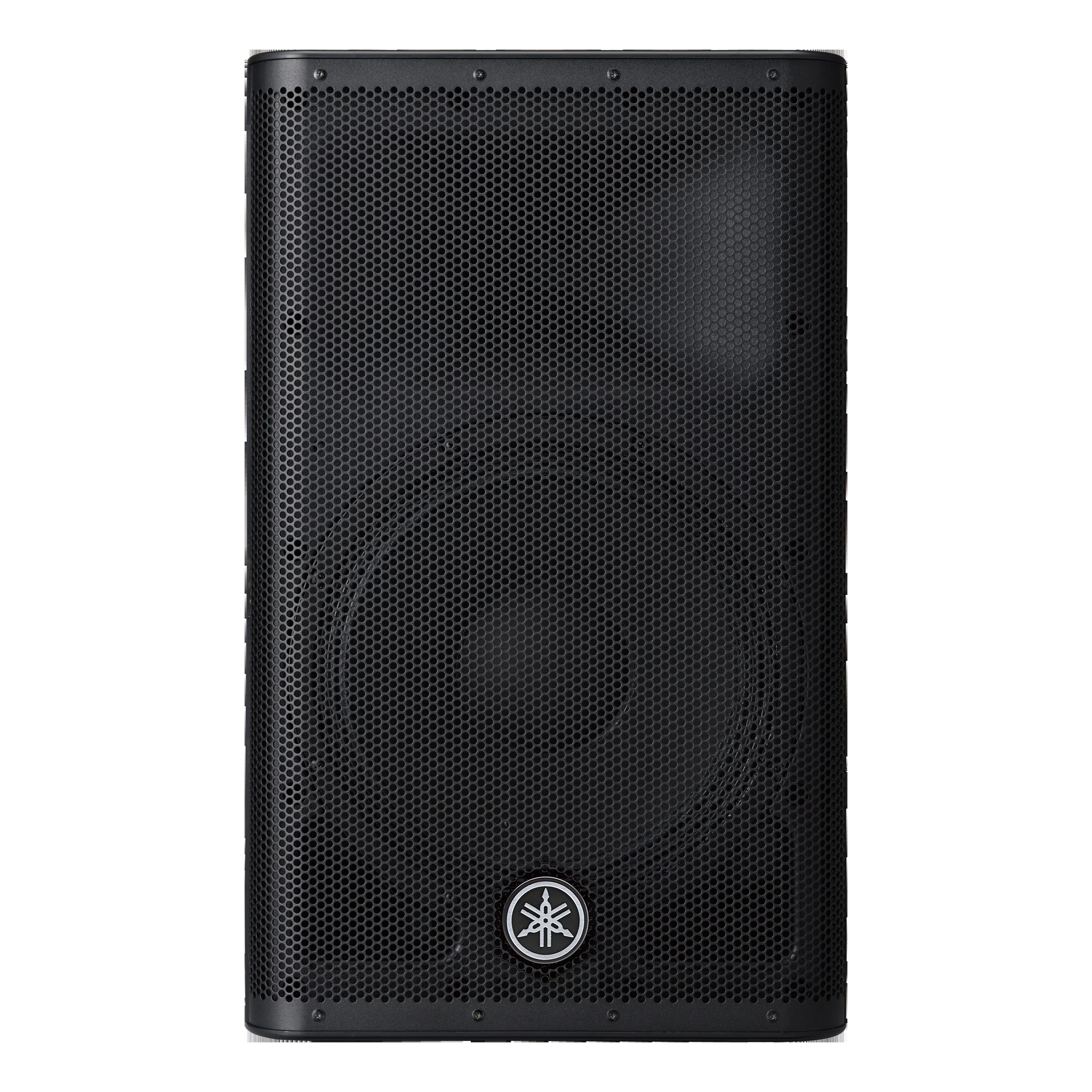

Speaker type : 12" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) : 52Hz - 20kHz
Nominal coverage H : 90°
Nominal coverage V : 60°
Components LF : Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite
Components HF : Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Crossover : FIR-X tuning™ (linear phase FIR filter)
Output power : Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis) : 134dB SPL
I/O connectors : INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
Processors : D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements : 100V - 240V, 50Hz/60 Hz
Power consumption : 110W
Flying and mounting hardware : Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Pole socket : 35mm with 2-way features (0 or 7 degrees)
Dimensions ( WXHXD) : 362mm (14 2/8") X 601mm (23 5/8") X 350mm (13 6/8")
Net weight : 18.6kg (41.0lbs)
Accessories : UB-DXR12 (U-bracket)
