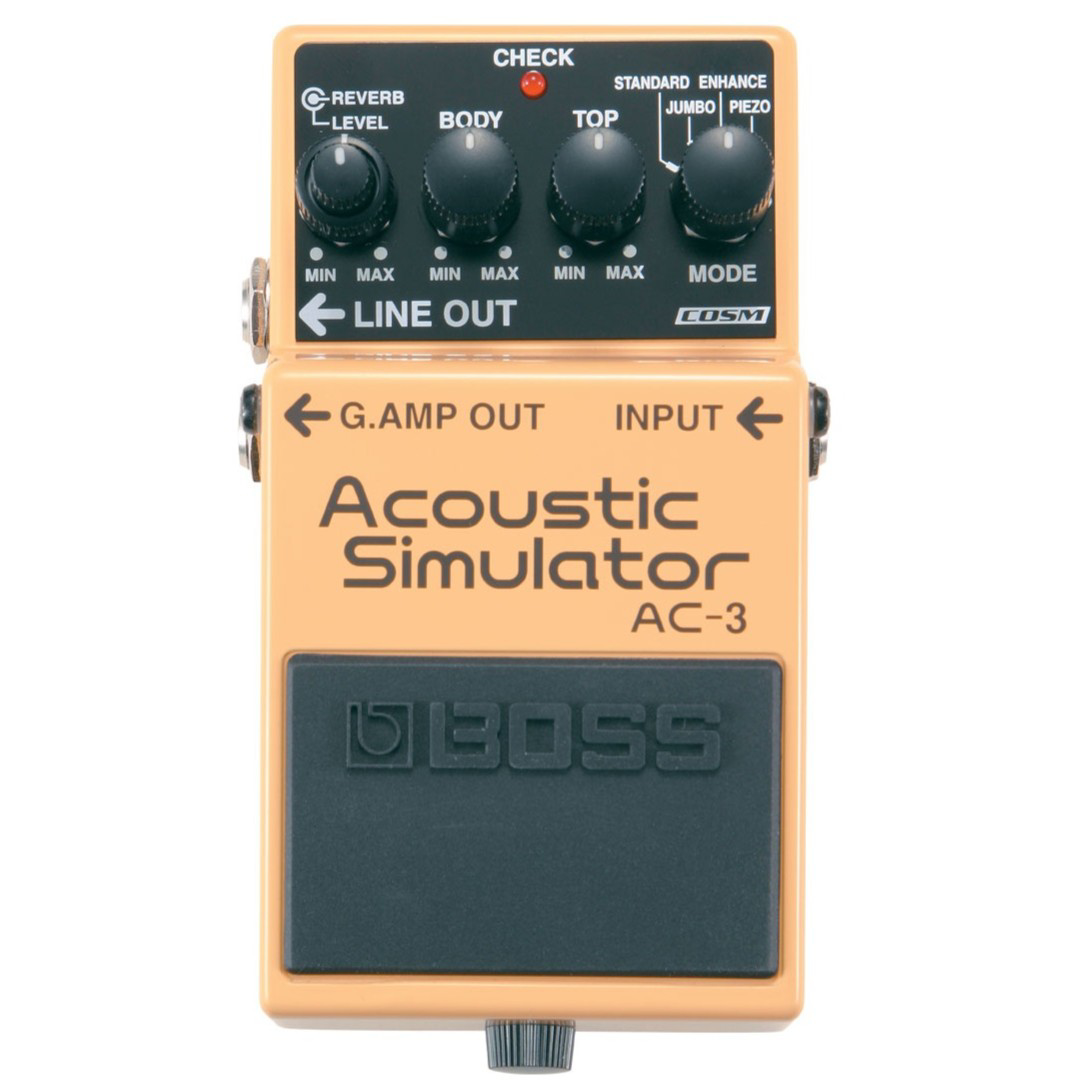

Boss AC3 | Acoustic Simulator Pedal

Features

• BOSS’s most advanced acoustic-guitar modeling in a compact pedal
• Four simulation modes: Standard, Jumbo, Enhanced, and Piezo-equipped
• Top and Body knobs for fine-tuning the virtual-body resonance
• Built-in reverb, optimized for acoustic-guitar simulation
• BOSS five-year warranty

Specs

• Nominal Input Level-20 dBu
• Input Impedance1 M ohm
• Nominal Output Level-20 dBu
• Output Impedance1 k ohm
• Recommended Load Impedance10 k ohms or greater
• BypassBuffered bypass
• ControlsMODE knob
  TOP knob
  BODY knob
  REVERB/LEVEL knob
  Pedal switch
• IndicatorCHECK indicator (Used for indication of check battery)
• Connectors
• INPUT jack: 1/4-inch phone type
  LINE OUT jack: 1/4-inch phone type
  G.AMP OUT(Guitar Amp Out) jack: 1/4-inch phone type
  DC IN jack
• Power SupplyAlkaline battery (9 V, 6LR61)
  AC adaptor (PSA series: sold separately)Current Draw70 mA
• Expected battery life under continuous useAlkaline: Approx. 3.5 hours
  *These figures will vary depending on the actual conditions of use.
• AccessoriesLeaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
  Alkaline battery (9 V, 6LR61)
• Options (sold separately)
• AC adaptor: PSA series
• SIZE AND WEIGH
• Width73 mm
  2-7/8 inches
• Depth129 mm
  5-1/8 inches
• Height59 mm
  2-3/8 inches
• Weight (including battery)425 g
  15 oz
• .

• Advanced Modeling

  BOSS’s COSM Acoustic-Modeling technology is beautifully showcased in this small but powerful pedal, which simulates an acoustic guitar much more precisely and realistically than previous technology allowed. Derived from BOSS top-of-the-line AD-8, the AC-3 simulates the sound of an acoustic guitar with incredible precision. Four simulation modes are provided: Standard, Jumbo, Enhanced, and Piezo-equipped; the latter supplies that famous “cut through the mix” direct piezo sound. Previous compact acoustic-guitar modeling-pedals were promising, but now the bar has been raised with AC-3.

• Fine Control

  Top and Body controls are provided for shaping the characteristics of the four acoustic models. Create the perfect acoustic-guitar sound quickly and easily with simple knob twists.

• Reverb Included

  Add depth and sweetness to the sound with the AC-3’s built in digital reverb. It’s like getting two pedals in one!

• Versatile Output Paths

  Two sets of outputs are provided for connecting the AC-3 to a standard guitar amp and to a direct input device such as a PA, recorder.
