Type
|

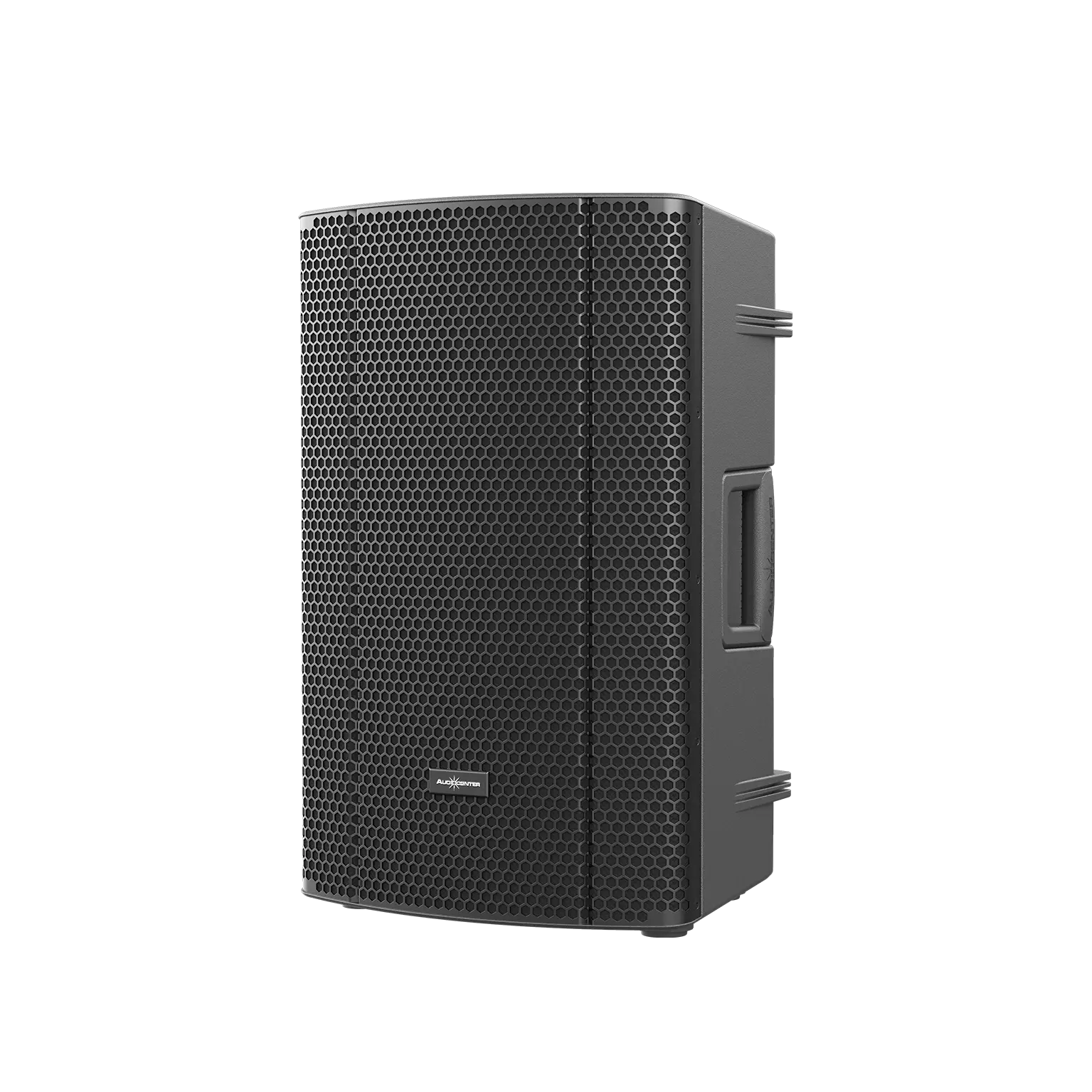

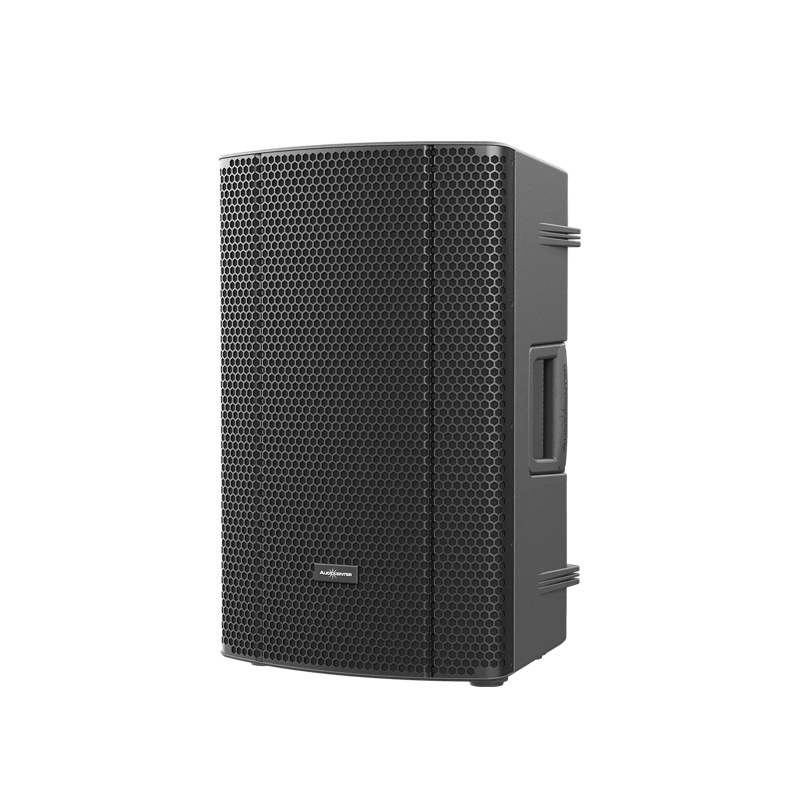

Portable Active DSP-controlled Loudspeaker
|
|
Frequency Response(-10dB)
|
45Hz-20kHz
|
|
Horizontal Coverage
|
90°
|
|
Vertical Coverage
|
60°
|
|
Maximum Calculated SPL/1M (Continuous/Peak)
|
128dB/ 134dB
|
|
HF Driver
|
Customized driver, 1.75” voice coil and 1.0”exit
|
|
LF Driver
|
Customized 15” driver, 3.0” voice coil
|
|
DSP
|
|
Processor
|
48kHz signal sampling frequency
|
|
Presets
|
MUSIC，FLAT，SPEECH，W/SUB
|
|
AMPLIFIER
|
|
Amplifier Circuitry
|
Class D
|
|
Power (RMS standards)
|
800W
|
|
Peak Power
|
1600W
|
|
Frequency Response(1W 8Ω 2ch)
|
20Hz-20kHz(±0.5dB)
|
|
Intermodulation Distortion
|
＜0.05%
|
|
Total Harmonic Distortion
|
＜0.05%
|
|
Cooling System
|
Cooling with fans, air convection
|
|
Protection
|
DC protection, short circuit protection,overheat protection, input overload protection, output overload protection,soft startup protection, overvoltage protection, undervoltage protection
|
|
Signal Input
|
Female XLR(Mono jack 6.35),3.5mm Jack Input, Wireless bluetooth
|
|
Signal Output
|
Male XLR mixed output or balanced output
|
|
Power Input
|
IEC power connector
|
|
Working Voltage
|
100-240V~ (±10%，50/60Hz）
|
|
Power consumption (1/8 output power)
|
64W
|
|
CABINET
|
|
|
Cabinet Material
|
New polypropylene composite material
|
|
Cabinet Color
|
Black is the default color
|
|
Grille
|
Iron mesh
|
|
Handles
|
1 side,1 top
|
|
Monitor Angle
|
Symmetrical 45° monitor angle
|
|
Hanging Hardwares
|
M8 screw
|
|
Pole Mount
|
Base hole Φ35mm
|
|
Speaker Dimension (W×H×D)
|
432×661×387mm
|
|
Carton Dimension (W×H×D)
|
476x743x445mm
|
|
Net Weight
|
19.0kg
|
|
Shipping Weight
|
23.0kg
|
