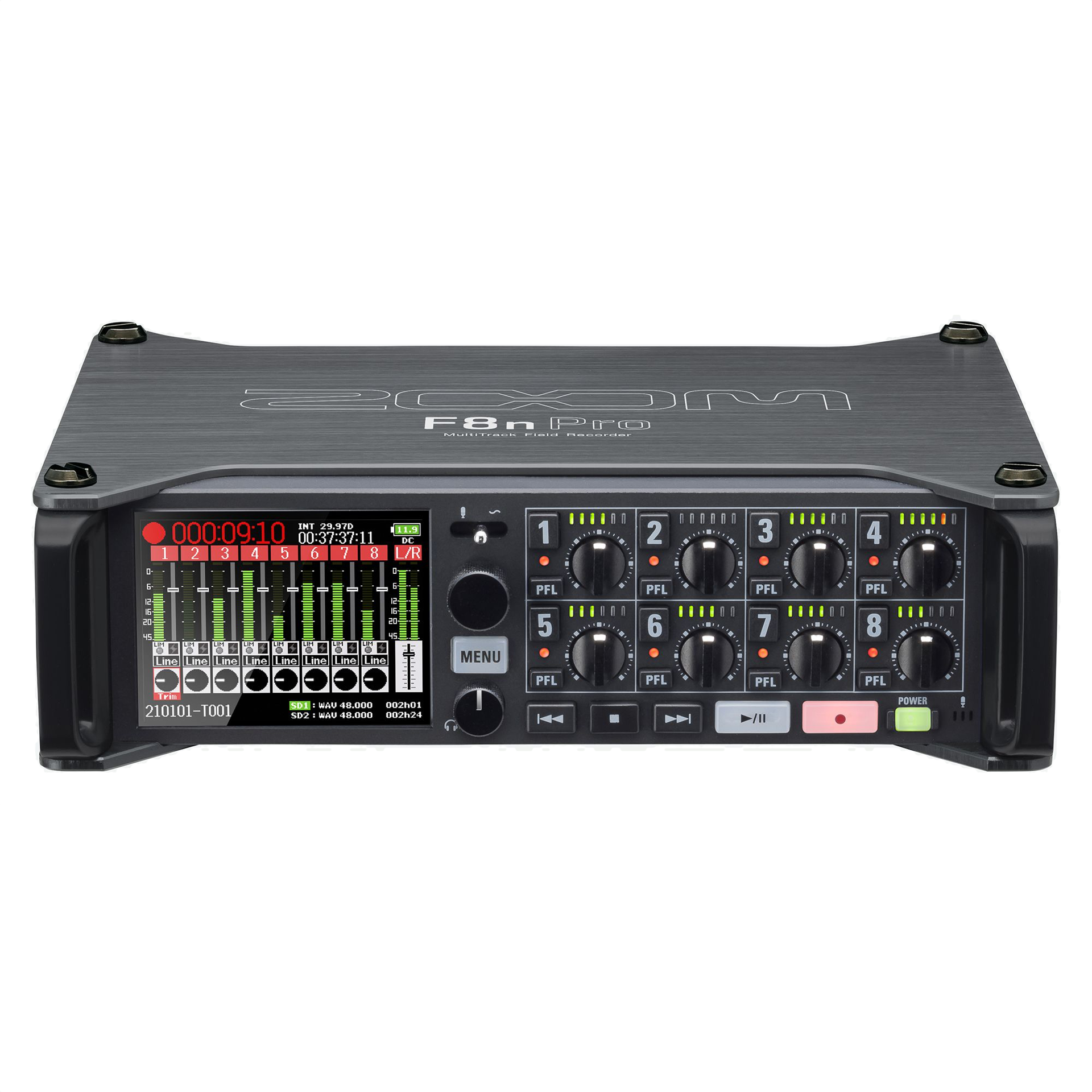

Zoom F8n Pro | 10 Track Field Recorder

Previous productOlympus VN541PC | Digital V...

Next productZoom H2n | Hand Held Digita...

Be the first to review this product

Manufacturer: Zoom

SKU: F8NPRO

Stock Availability

East London Store	Request Pricing & Availability
PE Store	Request Pricing & Availability

Price: R24 500,00

Old price: R32 995,00

Filmmakers and sound professionals know the importance of sharp, clean audio in storytelling. From the click of a seatbelt to the roar of an engine, the F8n Pro’s 8 inputs capture full dynamic range using 32-bit float technology.

Qty:

+ -

Features of the F8n Pro

32-bit float recording technology
8-channel/10-track field audio recorder/mixer
Records in BWF-compliant WAV format up to 192kHz/32-bit float
8 discrete inputs with locking Neutrik XLR/TRS combo connectors
High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
Switchable +4dB inputs with mic/line options for both XLR and TRS
Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
Zoom AutoMix™ software
Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)
High pass filter, phase invert, and mid-side decoder
Dual mini-XLR (TA3) balanced Main Outs plus ⅛" stereo mini-jack Sub Out
Dedicated headphone output (100 mW) with front panel volume control
2.4" full-color backlit LCD with monochromatic mode
Dual SD/SDHC/SDXC card slots, up to 1 TB each
Use as an 8-in/4-out USB audio interface
Free Zoom F8 Control App for iOS and Android allows wireless remote control,
file renaming, and metadata entry

Specs

INPUTS

INPUT 1 - 8	Connectors:	XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
Input source set to Mic	Input gain:	+10 – +75 dB
	Input impedance:	3 kΩ or more
	Maximum input level:	+4 dBu (at 0 dBFS)
	Phantom power:	+24/+48 V, 10 mA maximum per channel
Equivalent input noise		−127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)
Frequency response		20 Hz – 60 kHz, +0.5 dB/−1 dB (192 kHz sample rate)
A/D dynamic range		113 dB typ. (−60 dBFS input, A-weighted)
Crosstalk		−90 dB or less (between adjacent channels, 1 kHz)
MIC IN		ZOOM mic capsule input (use disables Inputs 1/2)
SLATE MIC		Built-in mic for voice memos can be assigned to tracks freely

OUTPUTS

MAIN OUT 1/2	Connectors:	TA3 connectors (balanced output, 2: hot)
	Output impedance:	150 Ω or less
	Reference output level:	−10 dBV (normal output level)
		+4 dBu (line output level)
		1 kHz, 600 Ω load
	Maximum output level:	+10 dBV (normal output level)
		+24 dBu (line output level)
		1 kHz, 600 Ω load
SUB OUT 1/2	Connectors:	3.5 mm stereo mini (unbalanced output)
	Output impedance:	100 Ω or less
	Reference output level:	−10 dBV (normal output level)
		−40 dBu (mic output level)
		1 kHz, 10 kΩ load
	Maximum output level:	+10 dBV (normal output level)
HEADPHONE	Connector:	1/4 inch stereo (unbalanced output)
	Output impedance:	18 Ω or less
	Maximum output level:	100 mW + 100 mW (32 Ω load)
D/A dynamic range		105 dB typ. (−60dBFS input, A-weighted)

RECORDING MEDIA

	Dual SD card slots:	SDHC cards: 4 GB – 32 GB
		SDXC cards: 64 GB – 1 TB

RECORDING FORMATS

When WAV selected	Supported formats:	44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz
		16-bit linear, 24-bit linear and 32-bit float
		Mono/stereo/2-10 ch poly
		BWF and iXML
	Maximum simultaneous recording tracks:	10 (8 inputs + stereo mix)
		8 (at 192 kHz sampling rate)
When MP3 selected	Supported formats:	128, 192 and 320 kbps
		44.1 and 48 kHz
		ID3v1 tags
	Maximum simultaneous recording tracks:	2

RECORDING TIME

	Using a 32GB card:	23:08:00 (48 kHz/32-bit float stereo WAV)
		5:47:00 (192 kHz/32-bit float stereo WAV)

TIMECODE

	Connector:	BNC
	Modes:	Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode)
	Frame rates:	23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D
	Precision:	±0.2 ppm
	Supported input levels:	0.2 - 5.0 Vpp
	Input impedance:	4.6 kΩ
	Output level:	3.3 Vpp
	Output impedance:	50 Ω or less

POWER SUPPLIES

	AA batteries:	8 (alkaline, nickel-metal hydride or lithium)
	AC adapter:	ZOOM AD-19, DC 12 V/2 A, center plus
	External DC power supply:	HIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9–18 V

ESTIMATED CONTINUOUS RECORDING TIMES:

• These values are only estimates.	2 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF	Alkaline batteries: about 7 hours
• These values are based on in-house testing methods.		NiMH batteries (2500 mAh): about 8 hours
• They will vary greatly according to use conditions.		Lithium batteries: about 13.5 hours
	8 channels to SD 1 48kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT OFF, TIMECODE OFF, LED/LCD brightness 5, 32Ω headphones, PHANTOM OFF	Alkaline batteries: about 4.5 hours
		NiMH batteries (2500 mAh): about 6 hours
		Lithium batteries: about 9.5 hours
	8 channels to SD 1/2 192kHz sampling frequency (32-bit float/16-bit linear/24-bit linear) MAIN/SUB OUT ON, TIMECODE Int Free Run, LED/LCD brightness 60, 32Ω headphones, PHANTOM 48 V	Alkaline batteries: about 0.5 hours
		NiMH batteries (2500 mAh): about 1 hour
		Lithium batteries: about 2 hours

DISPLAY

2.4 inch full-color LCD (320 × 240)

USB

	Connector:	Mini-B
		• Use a USB cable that supports data transfer.
		• USB bus power operation is not supported.
Mass Storage Operation	Class:	USB 2.0 High Speed
Multi Track audio interface mode operation (driver required for Windows, not required for Mac)	Class:	USB 2.0 High Speed
	Specifications:	Sampling rate: 44.1/48/88.2/96 kHz
		Bit depth: 24-bit linear/32-bit float
		8-in/4-out
Stereo Mix audio interface mode operation (no driver required) • Supports audio interface operation with iOS/iPadOS devices	Class:	USB 2.0 Full Speed
	Specifications:	Sampling rate: 44.1/48 kHz
		Bit depth: 16-bit linear
		2-in/2-out
Audio interface operation with recording (driver required for Windows, not required for Mac)	Class:	USB 2.0 High Speed
	Specifications:	Sampling rate: 44.1/48 kHz
		Bit depth: 24-bit linear/32-bit float
		10-in/4-out

Power consumption:		15 W
External dimensions:		7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
Weight: (including batteries)		1200 g
Note: 0 dBu = 0.775 Vrms
