360 Link and 360 Link Bus Compressor plug-ins take your SSL hybrid workflow to the next level, allowing you to control any 3rd party plug-in from the UC1 surface. Delivered through a streamlined user interface and designed with intuitive setup features, the 360 Link system lets you effortlessly start dropping 3rd party plug-ins into your session and control them with the advanced ‘console-style’ workflow that UC1 offers. Whilst UC1 is optimized for Channel Strip and Bus Compressor plug-in layouts, you can use the Link system to map any plug-in, from a parametric EQ to a reverb and everything in-between!
SSL 360 Link and 360 Link Bus Compressor come with a selection of customisable factory maps for popular 3rd party plug-ins from the likes of Slate Digital®, Universal Audio®, Waves® and Brainworx®. While UC1 is optimised for typical Channel Strip and Bus Compressor layouts, any plug-in can be quickly mapped from scratch using the user-friendly mapping tool. The mapping tool is super simple to use and offers a variety of mapping methods such as drag and drop or click and turn, allowing you to map your favourite plug-ins in no time at all.
Factory shipped maps 360 Link: Universal Audio: UAD SSL E Channel Strip, Slate Digital VMR (with SSL modules), Waves: SSL EV2 Channel, SSL E-Channel, SSL G-Channel, CLA MixHub, Plug-in Alliance: bx_console SSL 9000 J, bx_console SSL 4000 E, bx_console SSL 4000 G, Harrison FasTrack
Factory shipped maps 360 Link Bus Compressor: Plug-in Alliance bx_townhouse Buss Compressor, Plug-in Alliance Vertigo VSC-2, Slate Digital VBC FG-Grey, Slate Digital VBC FG-Red, Waves SSL Comp, Waves API 2500, UADx API 2500, UAD API 2500, UAD Empirical Labs Distressor, UAD Neve 33609 C, UAD SSL G Bus Compressor, UAD SSL G Bus Compressor Legacy.
35 Additional 360° Link User Maps Created by Luke Aziz
SSL’s Product Specialist Luke Aziz has created 35 additional user maps for popular 3rd party plug-ins from Fab Filter®, oeksound® and Soundtheory®. He's also created additional maps for non-channel strip plug-ins from us, Harrison and Slate Digital. Click the link below to download the maps and watch the video for instructions on how to install them. In the video Luke will also show you a couple of the maps in action.
Virtual SSL Console
At the heart of the UC1 system is the SSL 360° Plug-in Mixer, a place to view and control all of your 360°-enabled plug-ins. The 360° Plug-in Mixer offers an efficient way of interacting with multiple plug-ins simultaneously, further bridging the gap between console and in-the-box workflow. Thanks to the 360 Link system, 3rd party plug-ins are also shown in the plug-in mixer.
SSL sound and workflow

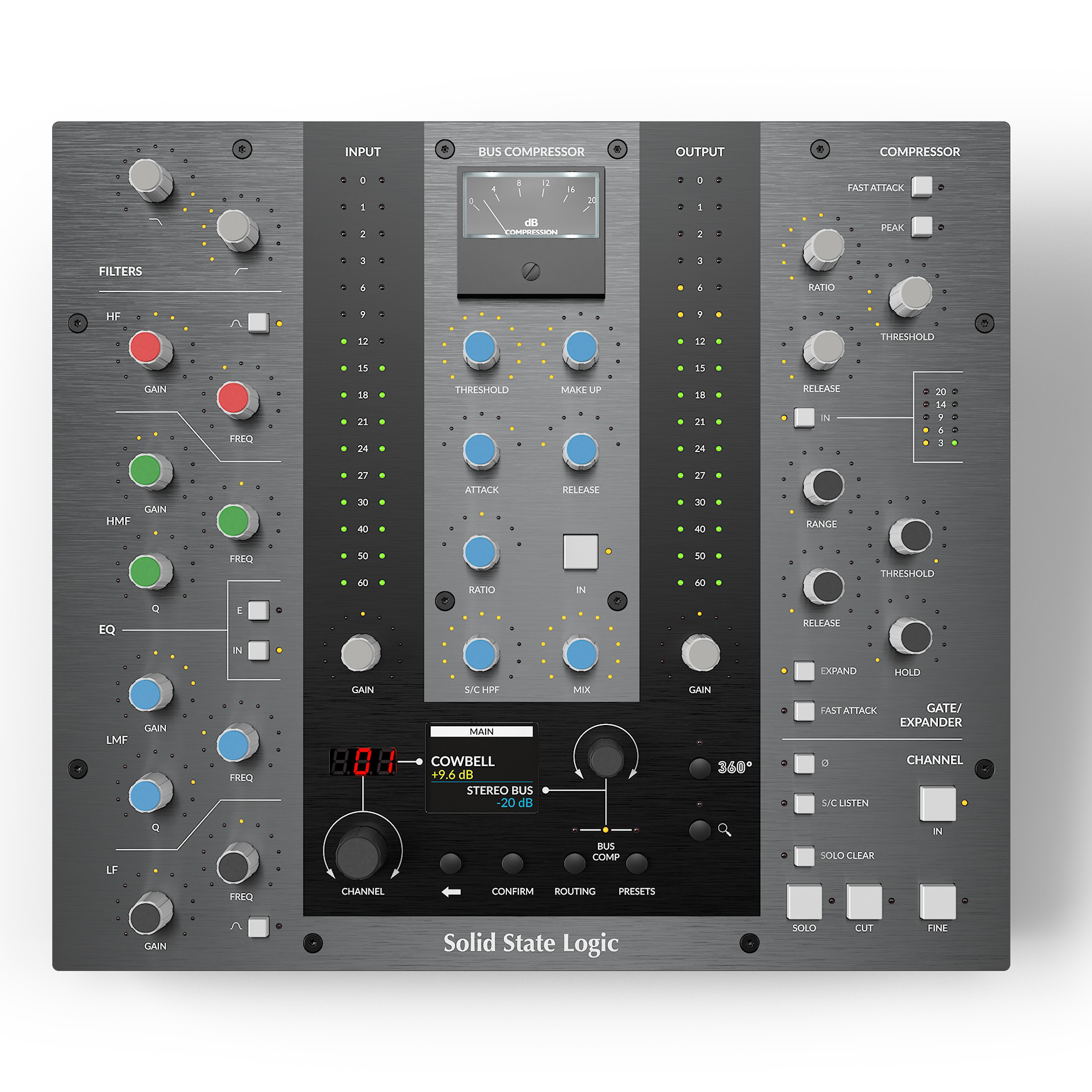

UC1 provides dedicated controls of all key SSL 360°-enabled plug-in parameters. EQ, Filters, Compressor and Gate/Expander controls offer the same configuration and visual feedback as found on large-format SSL consoles, allowing you to quickly home in on your channel processing sweet spot. SSL plug-ins are the only plug-ins designed by the team of SSL engineers at HQ in Oxford, with exclusive access to the original data sheets and specifications from which the consoles were made.
Bus Compressor
At the heart of UC1 are the Bus Compressor controls that talk directly to SSL Native Bus Compressor 2 or 3rd party plug-ins hosted in 360 Link Bus Compressor. The authentic layout and metering feels like you’re controlling a hardware bus comp built into the centre section of an SSL console. With a classic moving-coil gain reduction meter as found on SSL consoles since the 1970’s, it represents the Bus Compressors time constants and gain reduction characteristics perfectly for producers and engineers to know exactly how it’s reacting with their instruments, sub groups and of course mix bus.
Move to your production groove
Over the course of a session, workflow changes depending on the task in hand. We understand this and that’s why we made sure UC1 offers the tools, visual feedback and total synchronisation between hardware and software required to allow you to work the way you want at any given time. Get hands-on with the UC1 hardware, adjust parameters with the mouse in the individual plug-ins or immerse yourself in the Plug-in Mixer - changes are always synchronised across all software and hardware.
Features
- Legendary SSL workflow and console ergonomics meets the power of SSL 360.
- Every UC1 purchase includes licenses for 4K B, Channel Strip 2 and Bus Compressor 2 plug-ins. 360 Link and 360 Link Bus Compressor are license-free and available to all users.
- Seamlessly control 4K B, 4K E, 4K G and Channel Strip 2 and Bus Compressor 2 plug-ins directly from UC1.
- Control any 3rd party plug-in with the UC1 surface thanks to 360 Link & 360 Link Bus Compressor.
- Authentic moving-coil Bus Compressor gain reduction meter, driven digitally from the SSL Native Bus Compressor plug-ins and compatible 3rd party plug-ins via SSL 360 Link Bus Compressor.
- SSL Plug-in Mixer (hosted in SSL 360°) provides a place to view and control your 360-enabled plug-ins, all from one screen.
- Muscle-memory operation and constant visual feedback via the smart LED rings.
- UC1 display tells you which 360°-enabled channel strip and Bus Compressor plug-in UC1 is currently focused on.
- UC1 display gives you a value readout of the control currently being turned.
- Load Plug-in Presets and change Channel Strip process ordering (routing) directly from UC1 (native 360-enabled plug-ins only)
- Switch between 3 different DAWs that are connected to the Plug-in Mixer.
- High Quality all-metal enclosure, with a brushed anodised top plate.
- Hi-Speed USB connection to computer.
- Powered by SSL 360° Mac and Windows software.
- A 6-month Trial of Access included.
System Requirements
SSL 360° software must be installed on your Mac or Windows computer in order to use SSL UC1. SSL 360° is available from the Downloads page.
SSL 360°, 4K B, 4K E, 4K G Channel Strip 2 and Bus Compressor 2 - Operating System Requirements
Mac OS - 13 Ventura, 14 Sonoma, 15 Sequoia, 26 Tahoe
Windows 10, Windows 11
SSL Native Channel Strip 2 and Bus Compressor 2 Plug-ins
64-Bit Hosts
AAX Native, AU, VST3 and VST Plug-ins
Software Licensing Requirements
SSL User Account – to claim your plug-in licenses
iLok Account – to authorise your plug-in licenses to
Screen Resolution Requirements
1280 × 960
Computer Hardware Requirements
Intel 3rd Gen Core i5 (or comparable AMD processor) CPU running at 2.4GHz or higher
8GB RAM or more is recommended.
Internet-connection for software updates from SSL 360° application
UC1 Physical Specification
Dimensions:
11.8” x 10.5” x 2.4” / 300 x 266 x 61mm (Width X Depth X Height)
Weight:
Unboxed 4.6lbs / 2.1kg
Boxed 9.9lbs / 4.5kg
