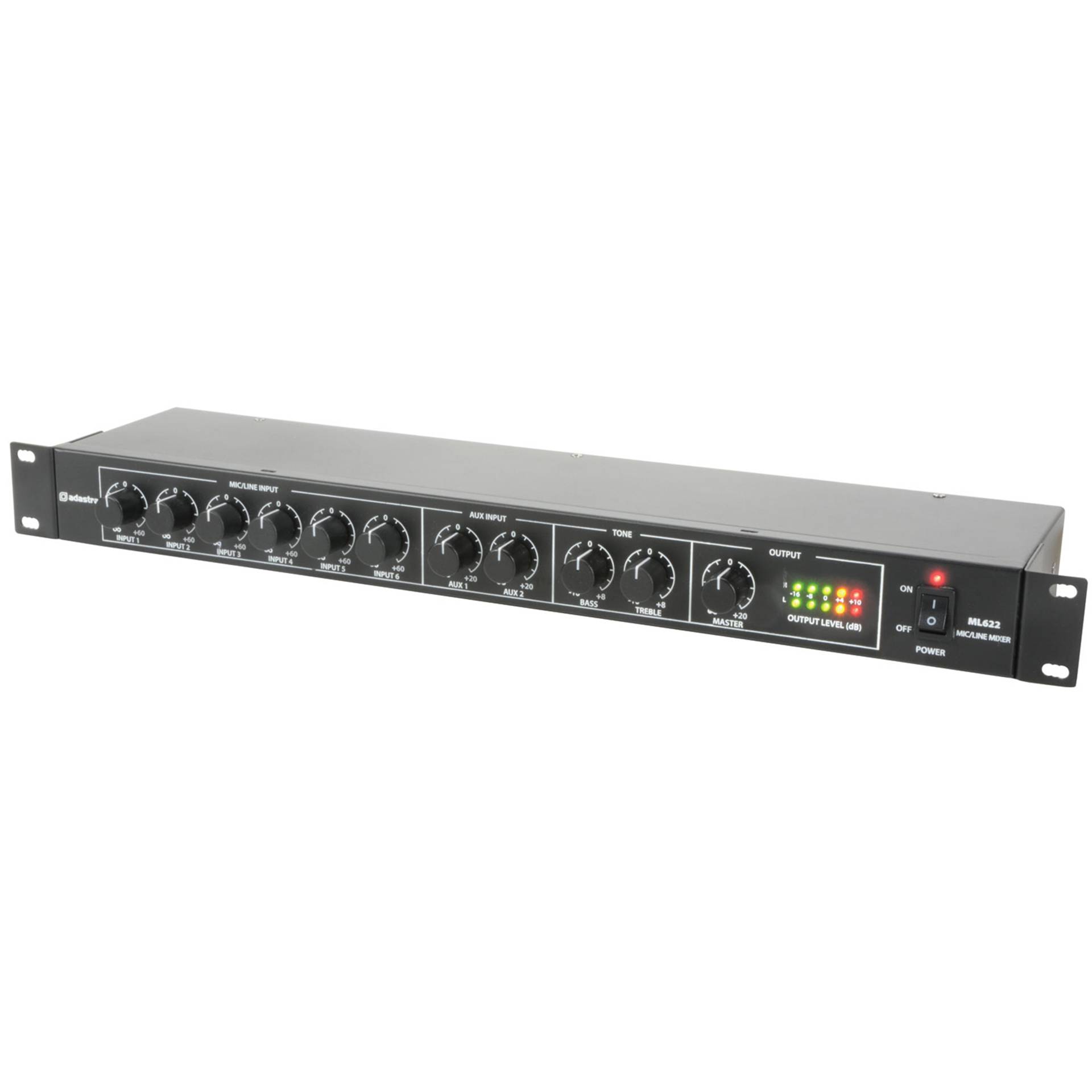

Adastra ML622 | 6-Channel Rack Mixer

SPECIFICATIONS:

• Power supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
• Fuse: T1AL 250V (mains) or F500mA (24Vdc)
• Inputs : mic/line: 6 x balanced XLR
• Inputs : aux: 2 x L+R RCA
• Outputs: L+R XLR, mono 6.3mm jack, L+R RCA (REC)
• Controls: 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
• Input impedance: 3.3k Ohms (mic/line), 10k Ohms (aux)
• Frequency response : mic: 20Hz - 18kHz
• Frequency response : line: 14Hz - 20kHz
• Frequency response : aux: 10Hz - 23kHz
• Input sensitivity : mic: -45dBV
• Input sensitivity : aux/line: -10dBV
• Signal to noise ratio : mic: 55dB
• Signal to noise ratio : aux/line: 60dB
• THD: 0.05%
• Dimensions: 482 x 130 x 44mm
• Weight: 1.43kg
• Phantom power: +20Vdc (switchable)

  FEATURES:

  • 24Vdc power option
  • 6 switchable mic or line inputs
  • 2 stereo aux inputs
  • Individually switchable phantom power
