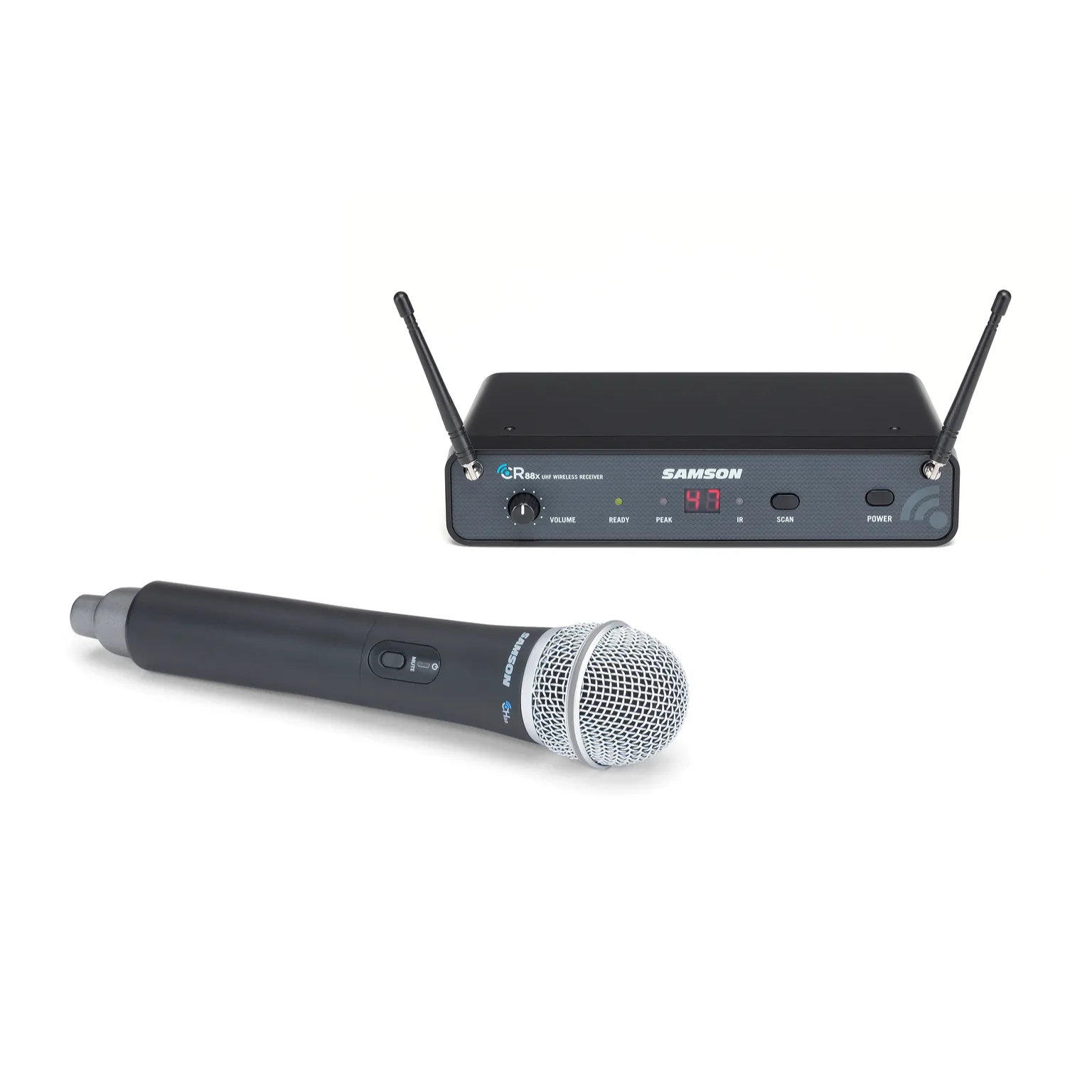

Samson Concert 88x | Handheld Cordless Microphone System

Previous productRode ME Dual | Compact Wire...

Next productSamson Concert 88x | Cordle...

Be the first to review this product

Manufacturer: Samson

SKU: CONCERT88XQ7K

Stock Availability

East London Store	1
PE Store	1

Price: R5 650,00

Old price: R7 995,00

The Concert 88x Handheld wireless system is the perfect solution for singers, educators, and presenters who demand professional-grade audio and ease of use. The one-touch scan feature quickly analyzes and selects the clearest of the 100 available channels, while the true-diversity design and tone key circuitry provide reliable wireless performance.

Qty:

+ -

Concert 88x Handheld System

High-performance professional UHF wireless system
100 operating channels across 25 MHz bandwidth
Up to 8 systems can be used simultaneously per frequency band (region dependent)
300' operating range (line-of-sight)
Rackmount kit included

CH88 Handheld Transmitter

Q7 dynamic microphone capsule
Adjustable input gain
Silent mute button
Power/Mute status indicator
Up to eight hours of continuous use from two AA batteries

CR88x Wireless Receiver

One-touch automatic frequency scan finds the best operating channel
Two digit LED display
Infrared link locks the receiver and transmitter to the same channel
True diversity design minimizes dropouts
Tone key and auto mute prevents unwanted noise when transmitter is off or out of range
Balanced XLR and unbalanced 1/4" outputs

Specifications

System
Working Range	300' (100m) line of sight
Audio Frequency Response	50 Hz - 15 kHz
T.H.D. (Overall)	<1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range	>100 dB A-weighted
Signal to Noise	>90 dB
Tone Key Frequency	35 kHz

CH88 Handheld Transmitter
Microphone Element	Dynamic
Input Gain Range	28 dB
RF Power	10 mW EIRP
Power Requirements	Two AA (LR6) alkaline batteries
Battery Life	8 hours
Dimensions	10.23" x ø2.1" / 260mm x ø54mm
Weight	0.48lb / 218g

CR88x Receiver
Audio Output Level - Unbalanced	+14 dBu
Audio Output Level - Balanced	+9 dBu
Audio Output Impedance - Unbalanced	810 Ohms
Audio Output Impedance - Balanced	240 Ohms
Sensitivity	-100 dBm / 30 dB sinad
Image Rejection	>50 dB
Operating Voltage	15 VDC 200mA
Dimensions (LxWxH)	8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
Weight	0.88lb / 400g
